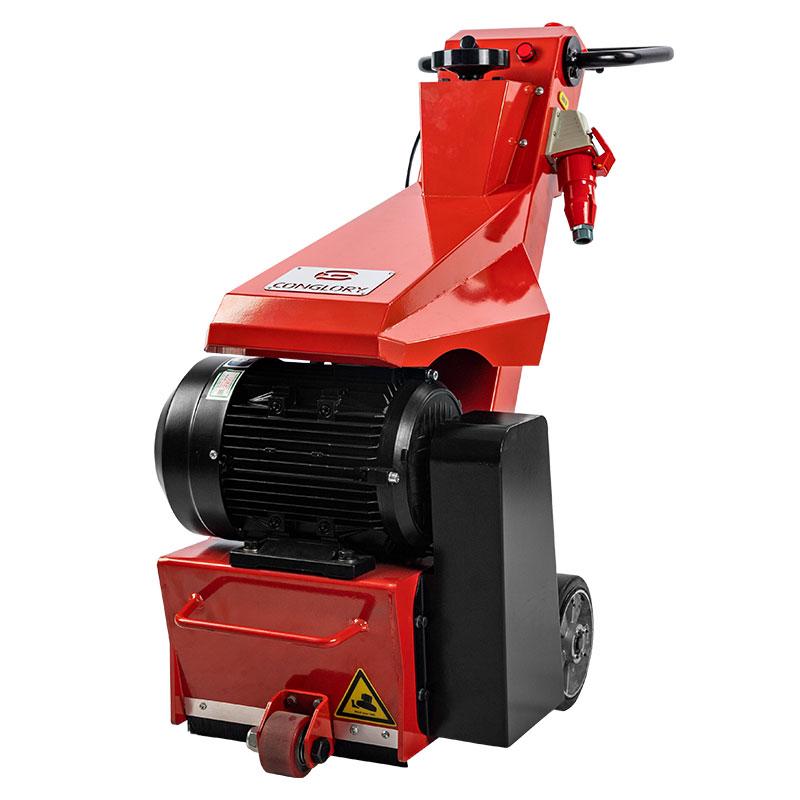

hand held concrete scarifier with brake

CS-250E, scarifing machine, is one of Conglory family. Scarifier also called concrete planers or milling machines, remove concrete faster and more aggressively than grinders.
  • Brand:

    Conglory
  • Product Detail


CS-250E, scarifing machine, is one of Conglory family.

Parameters


Voltage 380V 3Phase 50Hz
Motor
7.5 kW / 10 hp
Weight
170KG
Working depth
3-5mm
Working width
250mm
No. of cutter bar
6
No. of Blade
102
Packing
106*58*120cm
Accessories included
Drum mounted with 102 TCT Cutters (8pt) and 6 shifts
Special function Braking system

Apply to:
1.Bridge
2.Asphalt road
3.Road mark removing
4.Leveling surface

...

Simple Operation:

  • Green button for starting
  • Red button for emergency stop
  • Hand wheel for ajusting depth of cutting(1~11mm)

Handbrake:
  • Prevent the machine from walking faster.
  • Workers don't need to pull it hard and can work easily.
  • Make the scarifying effect more uniform.

Cutter Drum:
  • 1 cutter drum
  • 6 cutter shafts
  • 102 TCT cutters

Other details:

Best sale:
